描述
光滑顶部防水电缆接头

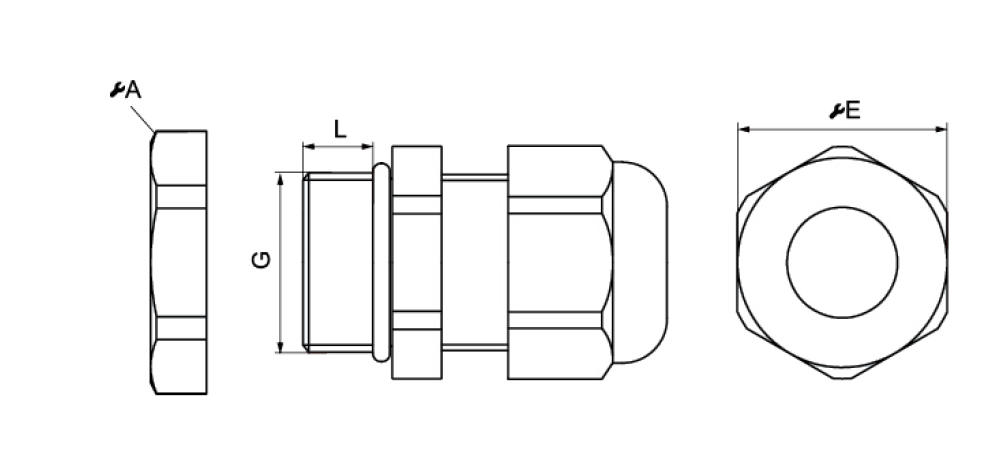

| 单位：毫米 | ||||||
| 代码 | 线大小 | 电缆范围 | 线OD g | 螺纹长度l | 跨度尺寸A＆E | 数量/包 |
| RNP-PG7 | PG7 | 4-6.5 | 12.5 | 9 | 19/16 | 100 |
| RNP-PG9 | PG9 | 4.5-8.5 | 15.2 | 9 | 22/19 | 100 |
| RNP-PG11 | PG11 | 5-10 | 18.6 | 9 | 24/22 | 100 |
| RNP-PG13.5 | PG13.5 | 6-11 | 20.4 | 10 | 27/24 | 100 |
| RNP-PG16 | PG16 | 8-13 | 22.5 | 10 | 30/27 | 100 |
| PNP-PG21 | PG21 | 13-18 | 28.3 | 12 | 36/33 | 100 |
| RNP-PG29 | PG29 | 18-25 | 37 | 12 | 46/42 | 50 |
| RNP-PG36 | PG36 | 23-32 | 47 | 15 | 56/52 | 20 |
| RNP-PG42 | PG42 | 30-38 | 54 | 18 | 65/60 | 20 |
| RNP-PG48 | PG48 | 37-44 | 59.3 | 18 | 69/68 | 20 |
| 码 | 线大小 | 电缆范围 | 线OD g | 螺纹长度l | 跨度尺寸A＆E | 数量/包 |
| RNP-M12 | M12x1.5 | 4-6.5 | 12 | 9 | 17/16 | 100 |
| RNP-M16 | M16x1.5 | 4.5-8.5 | 16 | 9 | 22/19 | 100 |
| RNP-M20 | M20x1.5 | 6-11 | 20 | 10 | 27/24 | 100 |
| RNP-M25 | M25x1.5 | 13-18 | 25 | 12 | 33/33 | 100 |
| RNP-M32 | M32x1.5 | 16-21 | 32 | 12 | 41/36 | 50 |
| RNP-M40 | M40x1.5 | 20-27 | 40 | 15 | 49/46 | 20 |
| RNP-M50 | M50x1.5 | 30-38 | 50 | 18 | 61/60 | 20 |
| RNP-M63 | M63x1.5 | 37-44 | 63 | 18 | 73/68 | 20 |
