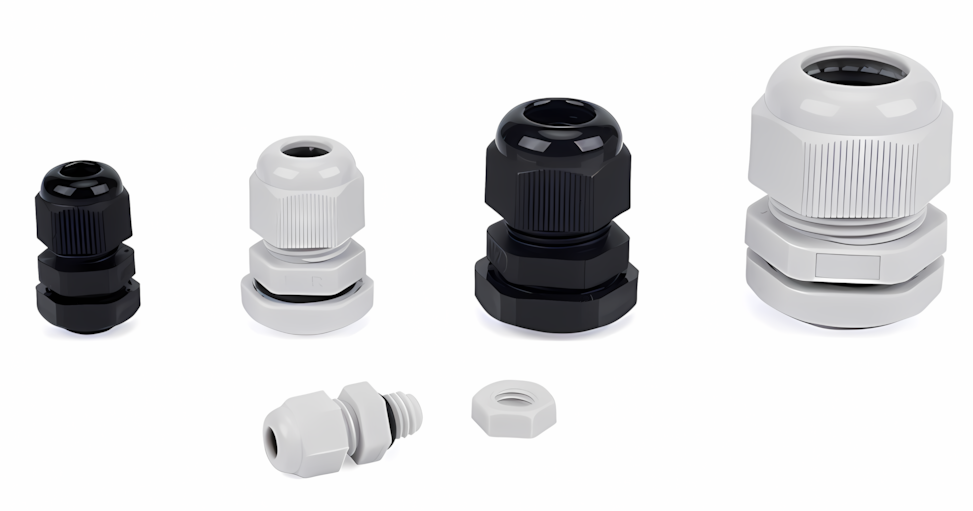

RND Type Cable Waterproof Connector Introduction
The RND type cable waterproof connector, a paragon of [Sealing Performance] in the cable connection domain, is currently the most commonly used model in the market. It meets the stringent CE certification standard, which serves as a testament to its high quality and safety. With an outstanding cost – performance ratio, it presents great value for our customers, especially those with budget – conscious yet quality – demanding projects.
This waterproof connector is crafted from top – notch high – quality new materials provided by us. Its [Durability] is further enhanced by these materials. It complies with environmental protection certifications such as RoHS, making it an eco – friendly option suitable for sale in most countries around the world. Equipped with a reliable self – locking function, it can effectively prevent loosening caused by equipment vibration, thus ensuring the stability of the connection. Whether in high – vibration industrial settings or regular household electrical applications, the self – locking feature of the RND connector plays a crucial role in maintaining a secure connection.
The surface of the product is flawless, presenting a neat and beautiful appearance. Its smooth finish not only adds to its aesthetic appeal but also contributes to easy installation and maintenance. The RND type cable waterproof connector is indeed your reliable choice for various connection needs.

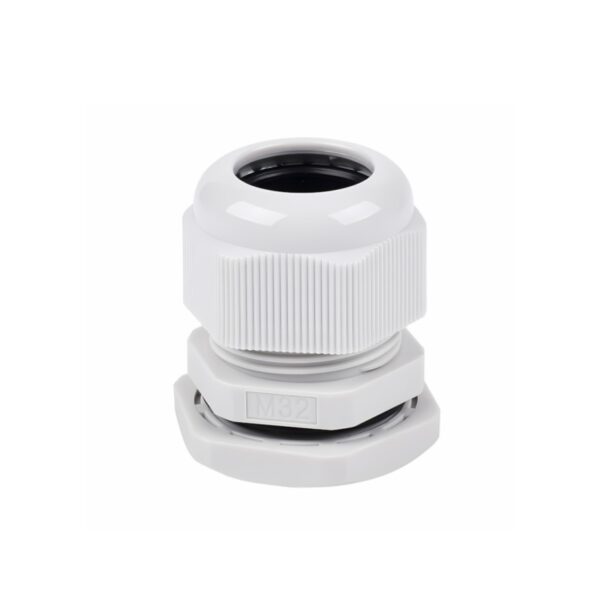

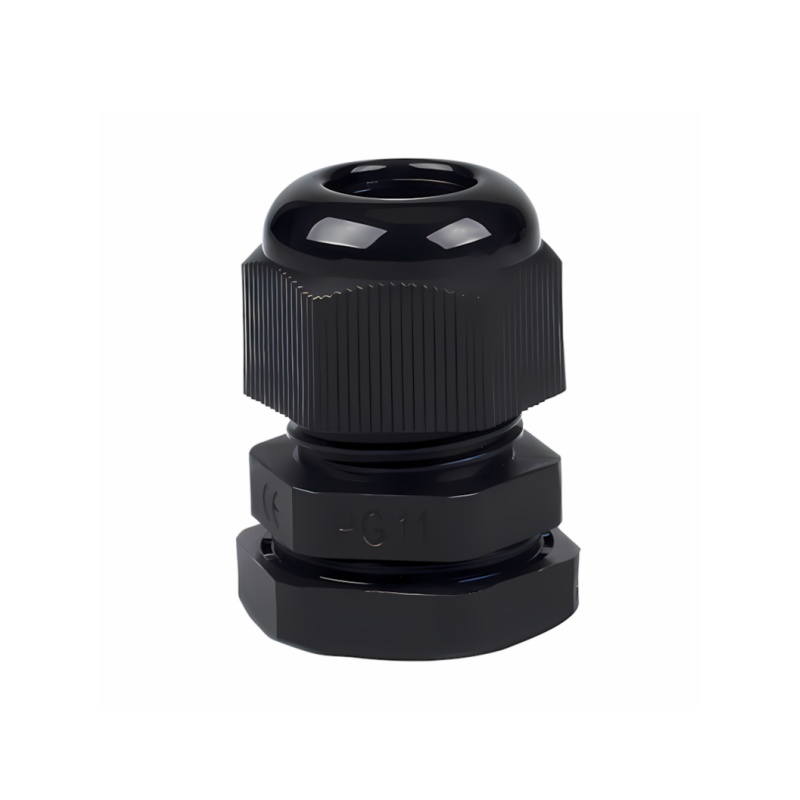

PG threaded nylon waterproof cable gland
| Unit：mm | |||||||
| Code | Thread Size | Cable Range | Thread O. D. G | Thread Length L | Long Thread L | Spanner Size A & E | Qty/bag |
| RND-PG7-6.5 | PG7 | 4-6.5 | 12.5 | 9 | 15 | 19/16 | 100 |
| RND-PG7-5 | PG7 | 3-5 | 12.5 | 9 | 15 | 19/16 | 100 |
| RND-PG9-8.5 | PG9 | 4.5-8.5 | 15.2 | 9 | 15 | 22/19 | 100 |
| RND-PG9-7 | PG9 | 4-7 | 15.2 | 9 | 15 | 22/19 | 100 |
| RND-PG11-10 | PG11 | 5-10 | 18.6 | 9 | 15 | 24/22 | 100 |
| RND-PG11-8.5 | PG11 | 4-8.5 | 18.6 | 9 | 15 | 24/22 | 100 |
| RND-PG13.5-11 | PG13.5 | 6-11 | 20.4 | 10 | 15 | 26/24 | 100 |
| RND-PG13.5-7.5 | PG13.5 | 4-7.5 | 20.4 | 10 | 15 | 26/24 | 100 |
| RND-PG13.5-9 | PG13.5 | 5-9 | 20.4 | 10 | 15 | 26/24 | 100 |
| RND-PG16-13 | PG16 | 8-13 | 22.5 | 10 | 15 | 30/27 | 100 |
| RND-PG16-12 | PG16 | 7-12 | 22.5 | 10 | 15 | 30/27 | 100 |
| RND-PG19-15 | PG19 | 12-15 | 24 | 10 | / | 30/27 | 100 |
| RND-PG21-18 | PG21 | 13-18 | 28.3 | 12 | 15 | 36/33 | 100 |
| RND-PG21-16 | PG21 | 10-16 | 28.3 | 12 | 15 | 36/33 | 100 |
| RND-PG25-21 | PG25 | 16-21 | 30 | 12 | 15 | 37/35 | 50 |
| RND-PG29-25 | PG29 | 18-25 | 37 | 12 | 15 | 46/42 | 50 |
| RND-PG29-20 | PG29 | 14-20 | 37 | 12 | 15 | 46/42 | 50 |
| RND-PG36-32 | PG36 | 23-32 | 47 | 15 | 18 | 56/52 | 20 |
| RND-PG36-26 | PG36 | 20-26 | 47 | 15 | 18 | 56/52 | 20 |
| RND-PG42-38 | PG42 | 30-38 | 54 | 18 | 20 | 65/60 | 20 |
| RND-PG42-31 | PG42 | 25-31 | 54 | 18 | 20 | 65/60 | 20 |
| RND-PG48-44 | PG48 | 37-44 | 59.3 | 18 | 20 | 69/68 | 20 |
| RND-PG48-35 | PG48 | 29-35 | 59.3 | 18 | 20 | 69/68 | 20 |
| RND-PG63-51 | PG63 | 42-51 | 70 | 30 | / | 82/77 | 10 |
| Code | Thread Size | Cable Range | Thread O. D. G | Thread Length L | Long Thread L | Spanner Size A & E | Qty/bag |
| RND-M8-2.5 | M8x1.25 | 1-2.5 | 8 | 7.5 | 12.5 | 13/12 | 100 |
| RND-M8-4.5 | M8x1.25 | 2.5-4.5 | 8 | 7.5 | 12.5 | 13/12 | 100 |
| RND-M10-6 | M10x1.5 | 3-6 | 10 | 8 | 12.5 | 15/13 | 100 |
| RND-M12-6.5 | M12x1.5 | 4-6.5 | 12 | 9 | 15 | 17/16 | 100 |
| RND-M12-5 | M12x1.5 | 3-5 | 12 | 9 | 15 | 17/16 | 100 |
| RND-M16-8.5 | M16x1.5 | 4.5-8.5 | 16 | 9 | 15 | 22/19 | 100 |
| RND-M16-7 | M16x1.5 | 4-7 | 16 | 9 | 15 | 22/19 | 100 |
| RND-M18-10 | M18x1.5 | 5-10 | 18 | 9 | 15 | 24/22 | 100 |
| RND-M18-8.5 | M18x1.5 | 4-8.5 | 18 | 9 | 15 | 24/22 | 100 |
| RND-M20-11 | M20x1.5 | 6-11 | 20 | 10 | 15 | 27/24 | 100 |
| RND-M20-7.5 | M20x1.5 | 4-7.5 | 20 | 10 | 15 | 27/24 | 100 |
| RND-M20-9 | M20x1.5 | 5-9 | 20 | 10 | 15 | 27/24 | 100 |
| RND-M22-13 | M22x1.5 | 8-13 | 22 | 10 | 15 | 29/27 | 100 |
| RND-M22-12 | M22x1.5 | 7-12 | 22 | 10 | 15 | 29/27 | 100 |
| RND-M24-15 | M24x1.5 | 12-15 | 24 | 10 | / | 30/27 | 100 |
| RND-M25-12 | M25x1.5 | 12-15 | 25 | 10 | / | 33/28 | 100 |
| RND-M25-18 | M25x1.5 | 13-18 | 25 | 12 | 15 | 33/33 | 100 |
| RND-M25-16 | M25x1.5 | 10-16 | 25 | 12 | 15 | 33/33 | 100 |
| RND-M27-18 | M27x1.5 | 13-18 | 27 | 12 | / | 35/32 | 100 |
| RND-M27-16 | M27x1.5 | 10-16 | 27 | 12 | / | 35/32 | 100 |
| RND-M28-18 | M28x1.5 | 13-18 | 28 | 12 | 15 | 35/33 | 100 |
| RND-M28-16 | M28x1.5 | 10-16 | 28 | 12 | 15 | 35/33 | 100 |
| RND-M30-21 | M30x1.5 | 16-21 | 30 | 12 | 15 | 37/35 | 100 |
| RND-M30-17 | M30x1.5 | 12-17 | 30 | 12 | 15 | 37/35 | 100 |
| RND-M32-21 | M32x1.5 | 16-21 | 32 | 12 | 15 | 41/36 | 50 |
| RND-M32-18 | M32x1.5 | 13-18 | 32 | 12 | 15 | 41/36 | 50 |
| RND-M36-25 | M36x1.5 | 18-25 | 36 | 12 | 15 | 45/42 | 50 |
| RND-M36-20 | M36x1.5 | 13-20 | 36 | 12 | 15 | 45/42 | 50 |
| RND-M40-27 | M40x1.5 | 20-27 | 40 | 15 | 18 | 51/46 | 20 |
| RND-M40-22 | M40x1.5 | 16-22 | 40 | 15 | 18 | 51/46 | 50 |
| RND-M46-32 | M46x1.5 | 23-32 | 46 | 15 | 18 | 53/52 | 20 |
| RND-M46-26 | M46x1.5 | 20-26 | 46 | 15 | 18 | 53/52 | 20 |
| RND-M50-38 | M50x1.5 | 30-38 | 50 | 18 | 20 | 61/60 | 20 |
| RND-M50-31 | M50x1.5 | 25-31 | 50 | 18 | 20 | 61/60 | 20 |
| RND-M58-44 | M58x1.5 | 37-44 | 58 | 18 | / | 70/64 | 20 |
| RND-M58-35 | M58x1.5 | 29-35 | 58 | 18 | / | 70/64 | 20 |
| RND-M63-44 | M63x1.5 | 37-44 | 63 | 18 | 20 | 71/68 | 20 |
| RND-M63-35 | M63x1.5 | 29-35 | 63 | 18 | 20 | 71/68 | 20 |
| RND-M70-51 | M70x1.5 | 42-51 | 70 | 30 | / | 82/77 | 10 |
NPT threaded nylon waterproof cable gland
| Code | Thread Size | Cable Range | Thread O. D. G | Thread Length L | Long Thread L | Spanner Size A & E | Qty/bag |
| RND-NPT3/8 | NPT3/8” | 4-8 | 17.1 | 15 | / | 22/19 | 100 |
| RND-NPT1/2 | NPT1/2” | 7-12 | 21.3 | 15 | / | 27/24 | 100 |
| RND-NPT3/4 | NPT3/4” | 13-18 | 26.6 | 15 | / | 33/33 | 100 |
| RND-NPT1 | NPT1” | 18-25 | 33.5 | 17 | / | 41/36 | 20 |
| RND-NPT1 1/4 | NPT1 1/4” | 25-32 | 42 | 18 | / | 49/46 | 20 |
| RND-NPT1 1/2 | NPT1 1/2” | 25-32 | 48 | 20 | / | 56/52 | 20 |
| Code | Thread Size | Cable Range | Thread O. D. G | Thread Length L | Long Thread L | Spanner Size A & E | Qty/bag |
| RND-G1/4 | G1/4” | 4-6.5 | 13.1 | 9 | / | 19/16 | 100 |
| RND-G3/8 | G3/8” | 4-8 | 16.6 | 10 | / | 22/19 | 100 |
| RND-G1/2 | G1/2” | 7-12 | 20.9 | 10 | / | 27/24 | 100 |
| RND-G3/4 | G3/4” | 13-18 | 26.4 | 10 | / | 33/33 | 100 |
| RND-G1 | G1” | 18-25 | 33.2 | 12 | / | 41/36 | 20 |
| RND-G1 1/4 | G1 1/4” | 25-32 | 41.9 | 15 | / | 49/46 | 20 |
| RND-G1 1/2 | G1 1/2” | 25-32 | 48 | 20 | / | 56/52 | 20 |
| RND-G2 | G2” | 43-51 | 60 | 20 | / | 69/68 | 20 |
These CE – certified cable glands are designed to meet the stringent safety and quality requirements of the European market. They offer a reliable connection for cables in various applications, whether it’s in industrial setups, electrical enclosures, or outdoor installations. With a robust construction and tested performance, they ensure secure cable retention, effective sealing, and proper grounding as per the CE certification standards. The cable glands are available in different sizes, materials (such as nylon, brass, or stainless – steel), and thread types (metric, PG, NPT, etc.) to accommodate a wide range of cable diameters and installation scenarios.
